Description

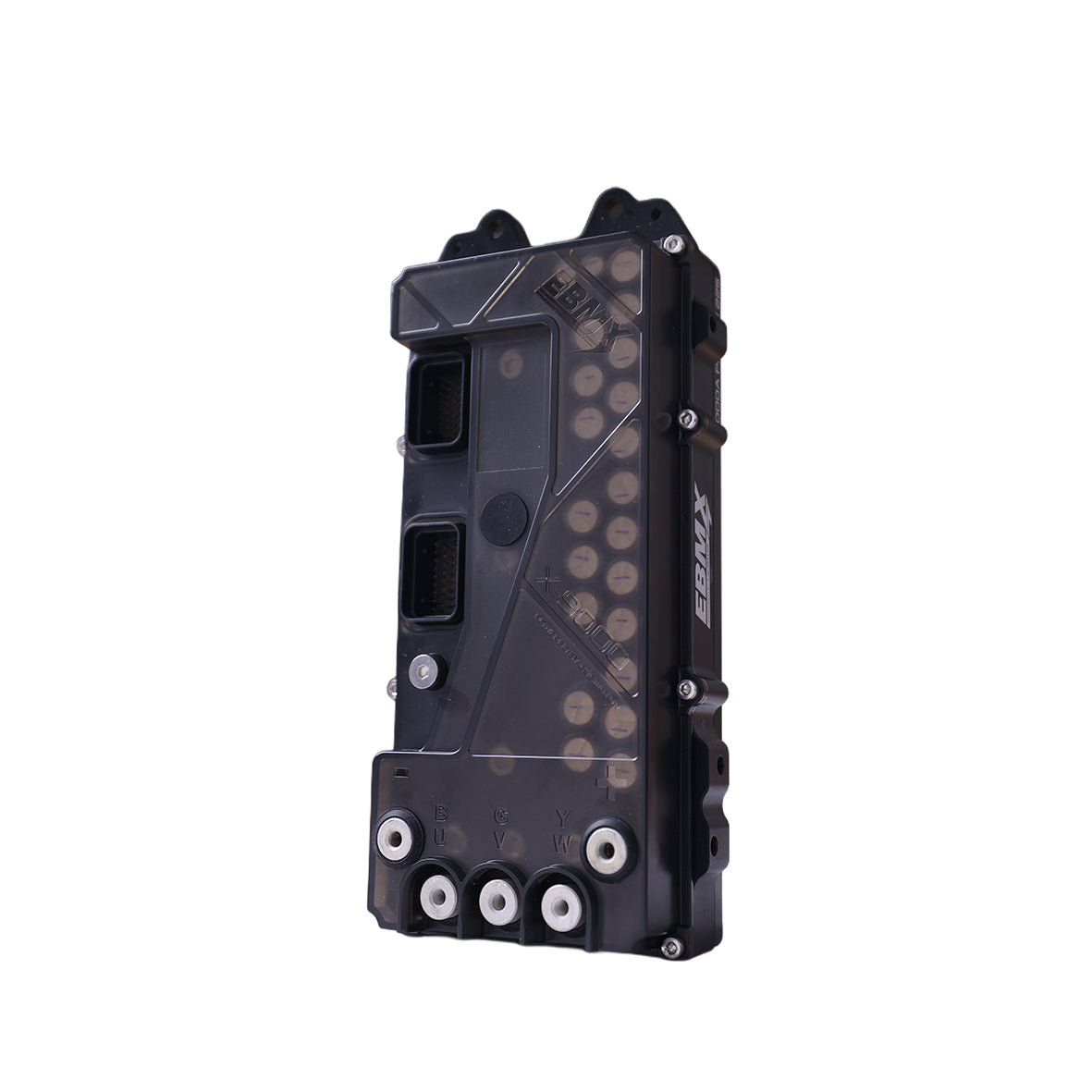

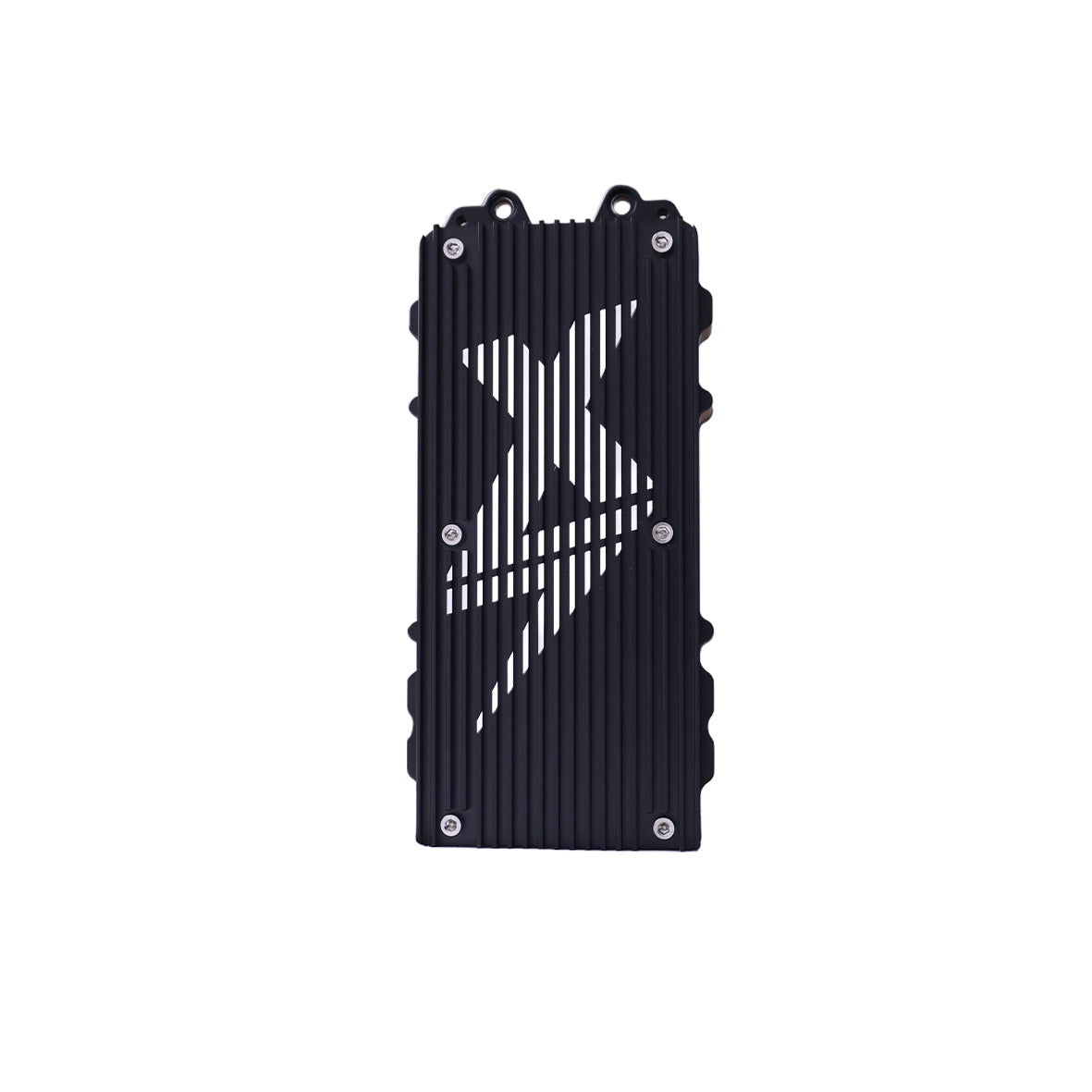

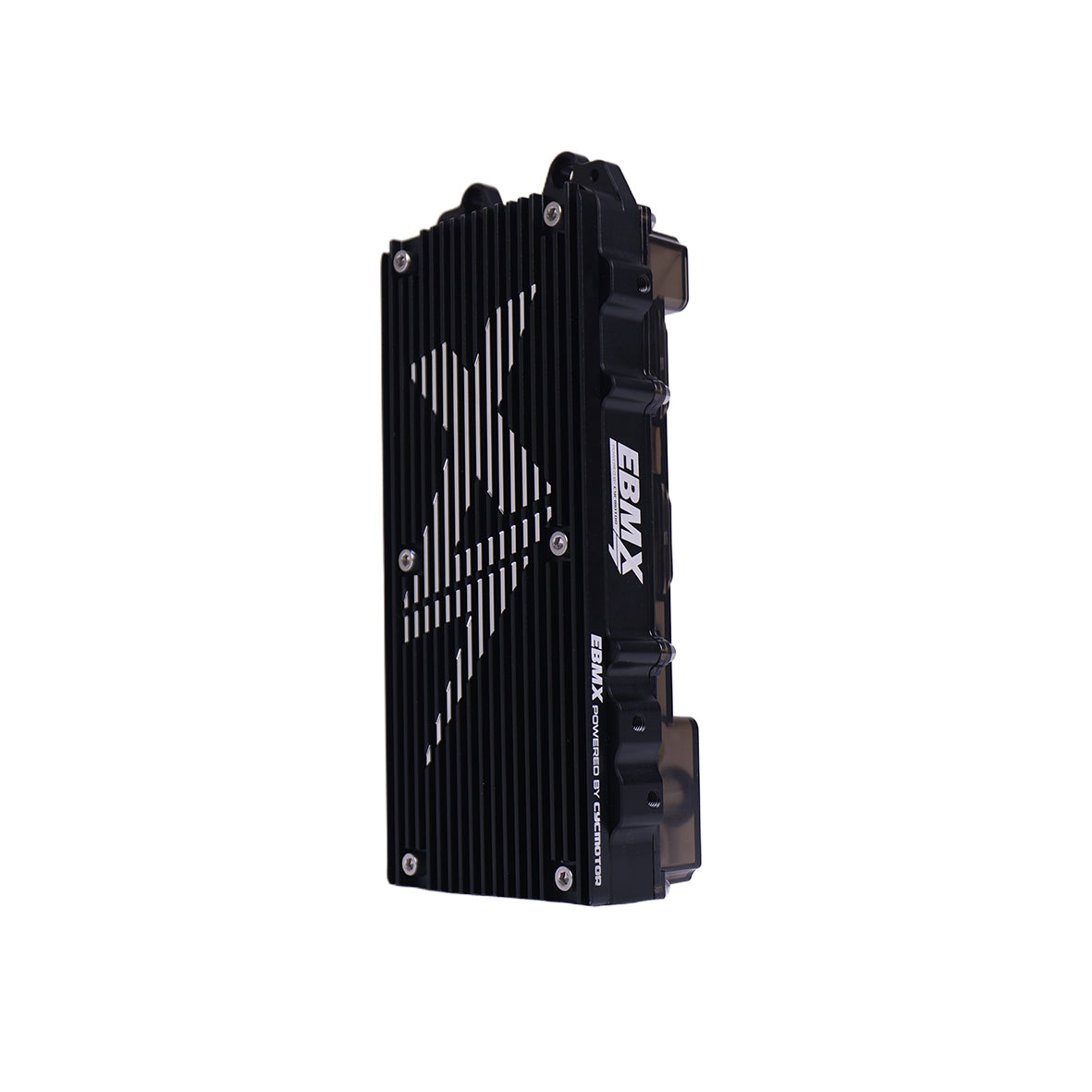

EBMX X-9000 V3 Controller (No Harness)

for Sur Ron, Talaria, E-Ride Pro & More

The long-anticipated EBMX X-9000 V3 is here — a complete redesign of the industry-leading V2 controller. After 18 months of testing and refinement, the V3 delivers unmatched performance, thermal efficiency, and plug-and-play compatibility with Sur Ron, Talaria, E-Ride Pro, and other high-performance E-Moto platforms. Final production begins shipping late July to early August 2025.

Built for serious riders and racers, this is more than just a controller — it’s a fully integrated performance system.

Looking for an EBMX X-9000 V3 wiring harness?

This kit does not include a harness. Click here to add the proper EBMX X-9000 V3 Harness Kit for your bike.

Looking for the full kit?

Click here to bundle & save on the EBMX X-9000 V3 Controller + Harness Kit

What’s New in the X-9000 V3 Controller:30x Infineon MOSFETs for 50kW continuous / 60kW peak power output6-layer PCB and CNC copper busbars – 30% cooler operation than V2Slimmer rear profile for better fitmentNew square-set plug system to prevent pin damageRemovable harness for easier servicingSupports 120V builds (no longer limited to 72V)Integrated IMU with Wheel Lift AssistEBMX X-Series App: Full throttle, regen, and motor tuning via BluetoothUpdated SW102T Color Display with customizable metrics

App & Display Integration:Live tuning: Regen, throttle curve, max amps, motor settingsLoad-and-Go Profiles: Choose presets by bike or battery typeModes: Street / Race, plus 3-level assist & EBMX E-ClutchLive Metrics: Power output, RPM, temp, speed, distance, regen, etc.

Fitment & Compatibility:Sur Ron Light Bee / Ultra BeeTalaria MX3 / MX4 / MX5 / XXXE-Ride Pro SS 2.0 (V3 Battery)E-Ride Pro SS 3.0 (Breaker & Non-Breaker Versions)E-Ride Pro SRReRode R1QS138 70H / 90H79 Bike Falcon S / ProAltis Sigma (COMING SOON)

* V2 harnesses are NOT compatible.

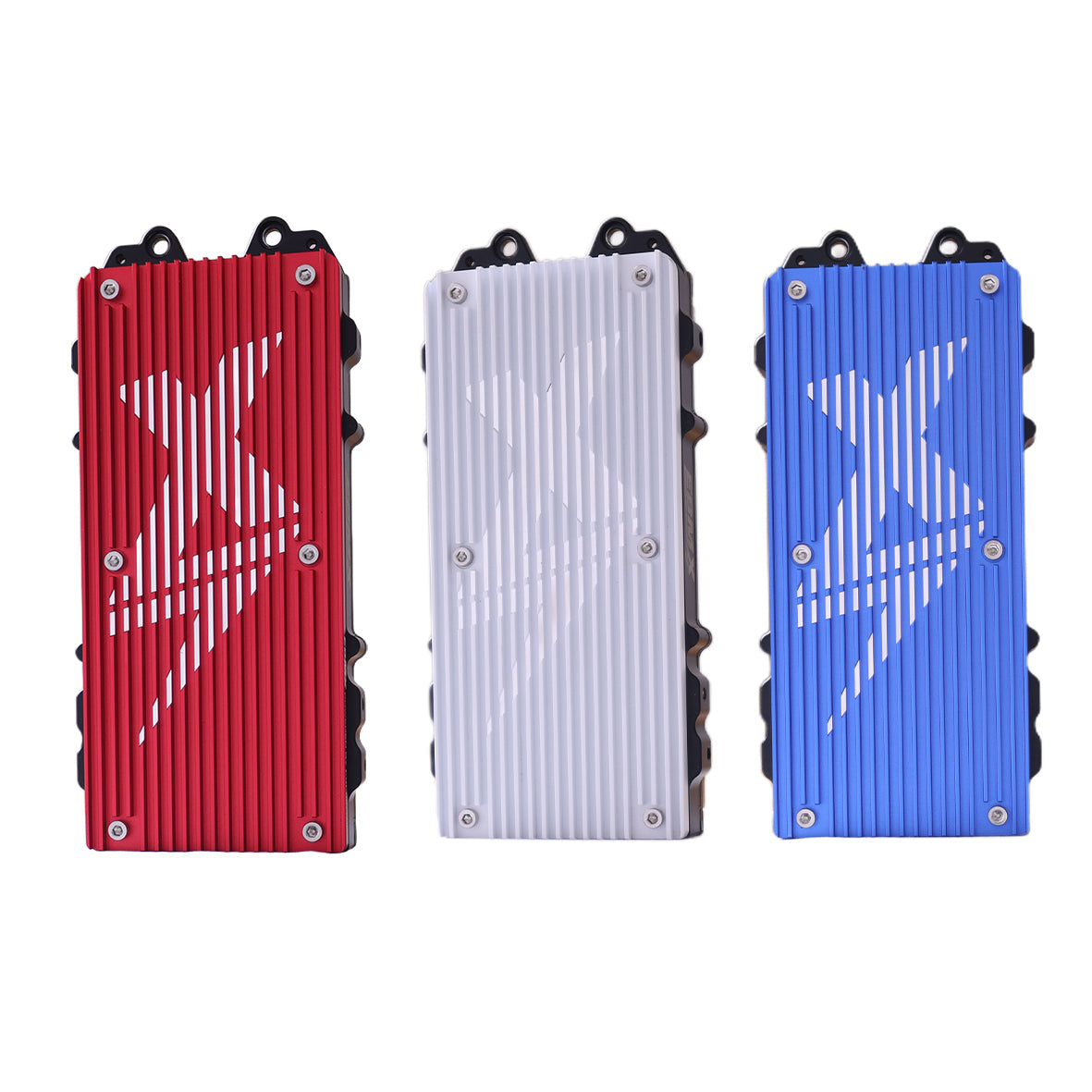

** Colored heatsinks (Red, Blue, White) sold separately.

*** Water-cooled upgrade option available for high-endurance race builds.

Compatible Motors (Preloaded Tunes):OEM Sur Ron / Talaria / E-Ride Pro motorsEBMX XLB-60, XTA-60, XUB-80KO RS & KO F SpecQS138 70H / 90H30+ supported motor profiles out of the box

Kit Contents:EBMX X-9000 V3 ControllerAir-Cooled Heatsink (Black)SW102T Full-Color DisplayThumb ThrottleBluetooth ModuleMounting Brackets1–2 Adapter HarnessIP67-Rated CNC Alloy Housing

IMPORTANT: Harness included.

EBMX X-9000 V3 Specifications:SpecDetailRated Power50kW Continuous / 60kW PeakVoltageUp to 120V (48–110V Operating)Phase Current1000A Continuous / 1600A BurstControl ProtocolField-Oriented Control (FOC) – VESCFirmwareCustom EBMX VESCIMU SupportWheel Lift Assist & E-ClutchWaterproofingIP67 RatedOperating Temp-25°C to 80°CWarranty2 YearsHeat Sink ColorsBlack (included) / Red / White / Blue (sold separately)

X-9000 V3: Built for Riders Who Want:Maximum power + smooth throttle feelFull adjustability from their phoneReliable, thermally stable high-performance outputSeamless tuning, no laptop requiredSafer wheel control with built-in IMUReady to build your dream setup?

Pair it with your custom wiring harness or bundle and save money by purchasing the EBMX X-9000 V3 Controller & Wiring Harness (Full Ki
